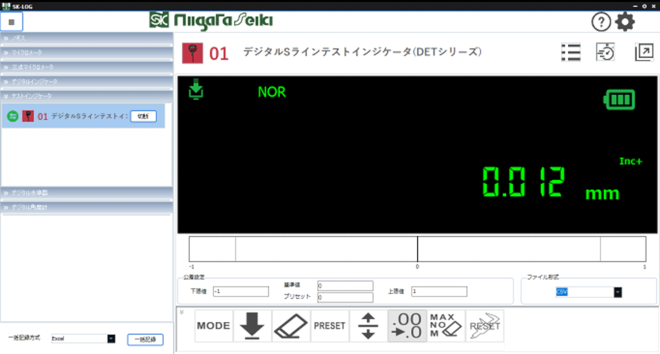

SK-LOG Lite Edition Software Download
- ●Use
- You can connect to multiple measuring instruments and import the measured data into Excel.
- ●Features
- List display and tolerance display are possible with multiple connections.
- The cell designated output to EXCEL is possible.
- Automatic version upgrade function.
- Voice reading function of measured values.
- Visually easy to use with command buttons.
- Able to connect with various measuring instruments.
- ●Target model
- Vernier calipers
- S-LINE Digital vernier calipers(MW series)
- S-LINE Digital vernier calipers(S series)
- Digital caliper(GDC series)
- S-LINE Height gauge
- Micrometer
- Electronic digital S-LINE micrometer(MW series)
- Electronic digital S-LINE micrometer(S series)
- Electronic digital S-LINE three-point internal micrometer
- Indicators
- Digital S-LINE indicators(MW series)
- Digital S-LINE indicators(MH series)
- Digital S-LINE indicators(DEI-233 series)
- Digital S-LINE indicators(DEI-WKS series)
- Digital S-LINE test indicators(DEI-234 series)
- Digital S-LINE test indicators(DET-SW series)
- Levelnic
- DL-SXY series
- DL-S4W
- DL-S3
- DL-S2W
- DL-m series
- DL-D5
- DL-ｍXY
- Digital Protractor
- DP-180
- DP-30XY
- DP-10XY
- BB-180W
- Mitutoyo
- Digital caliper
- Digital Micrometer
- Digimatic Indicator
- Vernier calipers
- ●Edition
- Lite version
- Standard version (Web authentication version, USB dongle version)
- Note:The Lite version is limited to one connected device and the cell specification output function of EXCEL is disabled.
The latest version of the driver software of the S line for data transfer software "SLOG" can be downloaded from the following.
License Agreement
Software provided in the "Niigata Seiki Home Page" can be downloaded only when the purpose of use on the following conditions.
Use conditions
Copyright of distribution software are the property of their Niigata Seiki Co., Ltd., except for those of particular described.
Use conditions
- It is used for the target model of software.
- Do not use the software to business practices.(It is not sold to rental act and third parties)
- It has the operating environment described in the software introduction
- It does not matter that responsibility to Niigata Seiki for any damages caused by this software.
- Modifying the software, or not reverse engineering.
- Download the introduction of the software will be done under the responsibility of the customer.
- Software may be used to improve or change without notice.
- If there are third-party programs in the software, separately, but will be made use license of the program for customers than other companies, as long as it does not conflict with the contents of the license agreement, the customer shall be subject to the terms and conditions of this Agreement describedYou have.
Copyright of distribution software are the property of their Niigata Seiki Co., Ltd., except for those of particular described.
On the License Agreement of the check, please download.
Get latest versions
| Soft name | Edition | Supported OS | Version | Last updated | File capacity | Download |
| SKLOG | Lite | Windows7・8・10・11 | 1.7.2.0 | 2024.04.02 | About68.2MB |  |
Due to the discontinuation of TLS1.0, updates are no longer available if you are using versions prior to 1.7.1.1.
Please download the latest version from this site.
Please download the latest version from this site.
Get USB Driver
| Driver name | Applicable | Supported OS | Version | Last updated | File capacity | Download |
| FTDI USB Driver | DTC Wired Cable Products | Windows7・8・10・11 | 2.12.28 | 2017.08.24 | About3.87MB | |
| ANT Driver | MW series products | Windows7・8・10・11 | 1.2.4.0 | 2011.04.12 | About952kB | |
| DP-180 Driver | Levelnic DP-180 | Windows10・11 | 11.1.0.53 | 2022.02.18 | About7.12MB | |
| Window7・8 | 6.7.6.2130 | 2018.05.23 |
Get Library
| Driver name | Applicable | Supported OS | Version | File capacity | Download |
| Microsoft Visual C++ Redistributable | BB-180W,DET-SW etc BLE device |
Windows10･11 | VC2015,2017,2019,2022 | About13.0MB | |
Driver instruction manual
| Applicable | Document type | Version | Last updated | File capacity | Download |
| Levelnic DP-180 | Driver installation manual | 2205 | 2022.05.25 | About130KB | |
Get previous versions
| Soft name | Edition | Supported OS | Version | Last updated | File capacity | Download |
| SKLOG | Lite | Windows7・8・10・11 | 1.6.3.0 | 2023.04.28 | About32.8MB | |
| SKLOG | Lite | Windows7・8・10・11 | 1.5.2.1 | 2022.09.30 | About32.0MB | |
| SKLOG | Lite | Windows7・8・10 | 1.4.1.0 | 2022.04.08 | About29.4MB | |
| SKLOG | Lite | Windows7・8・10 | 1.3.1.0 | 2022.03.04 | About28.7MB | |
| SKLOG | Lite | Windows7・8・10 | 1.2.3.0 | 2022.01.24 | About18.8MB | |
| SKLOG | Lite | Windows7・8・10 | 1.1.13.1 | 2021.11.22 | About18.8MB | |
Change log
- ●Ver1.7.2.0[2024.04.02]
- Addition of Timer Reset button
If you want to record with automatic output setting at the same timing for multiple measuring instruments, press the Timer Reset button after connecting all measuring instruments.
Enables automatic recording at the same timing by multiple measuring instruments. - Levelnic DP-180 ABS display yellow device additionally supported.
The device have red and yellow ABS indications on the DP-180. Depending on the color of the display, the communication specifications differ and the device will not operate properly.
Check the color of the ABS display on DP-180 and select the device. - Changed memory limit from 2GB to 3GB (LAA (Large Address Aware) support)
- Fixed a problem that prevented disconnection.
- Addition of Timer Reset button
Past version upgrade information
- ●Ver1.7.1.1[2023.12.15]
- Fixed a problem that prevented SK-LOG from updating.(Automatic update will be enabled after 1.7.1.1.)
＊Due to the discontinuation of TLS1.0, updates are no longer available if you are using versions prior to 1.7.1.1.
Please download the latest version from this site.
- Fixed a problem that prevented SK-LOG from updating.(Automatic update will be enabled after 1.7.1.1.)
- ●Ver1.7.1.0[2023.11.30]
- Fixed a problem in which commands could not be sent without opening the settings screen.
- Corrected a cell position error when restarting recording.
- Fixed a problem in which changes to standard values were not reflected in the main screen of tolerance settings.
- Corrected a problem of disconnection of MW Series products.
- Support for additional Digital S-Line Multi Height Gauge(MHG-60M) products
- Replacement of Chinese instruction manual.(When Chinese was selected, the English version of the instruction manual was displayed, but it was changed so that the Chinese version of the instruction manual is displayed.)
- ●Ver1.7.0.0[2023.10.30]
- Chinese addition
- ●Ver1.6.3.0[2023.04.28]
- Fixed the function of saving the recording method of batch recording settings when the application is restarted.
EXCEL and CSV records were already saved, but other records will be saved as well. - Correspondence to the phenomenon that incorrect measurement values are entered during batch recording.
Key input reflection time and measured value output preparation processing time are added and extended. - The date and time of creation is now entered correctly in the file generated by batch recording when CSV recording is set up.
- Fixed the function of saving the recording method of batch recording settings when the application is restarted.
- ●Ver1.6.2.0[2023.03.27]
- Support for batch recording in Other records.
＊In addition to EXCEL and CSV records, batch recording is now possible for Other records. - Fixed a problem that prevented proxy authentication when proxy settings include an atmark, etc.
- Support for batch recording in Other records.
- ●Ver1.6.1.0[2023.01.27]
- Fixed a bug that caused excessive disconnections when real-time communication was turned off for ANT communication devices.
- ●Ver1.6.0.5[2022.12.28]
- Multiple cell ranges and multiple tolerance setting functions added
＊Multiple ranges can be set using the Ctrl key on EXCEL. - Fixed the problem that multiple records are recorded by long pressing the shortcut key.
- Speed up the real-time communication interval of ANT devices from 1 second to 0.2 seconds
＊However, due to the characteristics of ANT communication, when performing real-time communication, communication may be interrupted once every several tens of seconds. - Fixed to automatically disconnect/connect when ANT communication is interrupted
- Multiple cell ranges and multiple tolerance setting functions added
- ●Ver1.5.2.1[2022.09.30]
- Displays the number of CSV records and the number of recorded files (only for 1-axis measuring instruments)
- Added CSV record deletion command function
- Save file type information for maximized/standard, list/single screen, batch recording (memorized at next startup)
- Supports automatic variable height of the connection list according to the number of measuring instruments
- Supported dialog display when connection failed due to Bluetooth setting off
- ●Ver1.5.1.0[2022.09.05]
- Added a command that can change the file name during CSV recording.
- Improved connection success rate and stability when connecting BLE devices.
- Changed to access the support page directly in the dialog requesting the redistributable library.
- ●Ver1.5.0.1[2022.07.22]
- Supports Windows 11
- Supports time recording when real-time OFF.
- If the recording interval is less than 1 second, the measuring instrument status monitoring function is omitted.
- Changed the initial value of the measurement interval of CSV recording to the value suitable for each measuring instrument.
- Fixed a bug in the recording range error in reverse recording of Excel recording.
- ●Ver1.4.1.0[2022.04.08]
- Product addtion of Digital S-LINE test indicators (DET-SW Series)
→Recording with Digital S-LINE test indicators (DET-SW Series) became possible. - The selection of the measuring instrument can be switched with the shortcut key.
→By combining Ctrl + 1 and Ctrl + 2 keys with Ctrl and number keys, it is easy to switch the measuring instrument on the measured value display screen.
- Product addtion of Digital S-LINE test indicators (DET-SW Series)
- ●Ver1.4.0.0[2022.03.31]
- Sheet switching notification when recording multiple sheets
→Changing between seats has become easier to understand. - Variable list display support
→The measured values in the list are easier to see and the buttons are easier to operate. - CSV file name change
→The last recorded time is used as the file name to prevent tampering with the measurement. - Fixed a bug that the record button is not recorded unless the record button is pressed twice when using the DTC-M1 cable.
- Corrected to display the measuring instrument number when the setting value error of Com and BLE occurs.
- Supports dialog display when BLE service is unavailable
- Sheet switching notification when recording multiple sheets
- ●Ver1.3.1.0[2022.03.04]
- Create a proxy setting form (addition of user name / password setting function)
→ You can now select from three methods: proxy not used, automatic acquisition, and user specification.
- Create a proxy setting form (addition of user name / password setting function)
- ●Ver1.3.0.0[2022.02.15]
- Supports additional commands to initialize the write cell position of the measuring instrument.
- Support for adding commands to delete all measured values in the specified cell range of the measuring instrument.
- A caution dialog is displayed when the COM number or BLE device number is not set.
- Supports connection help screen display (ANT, BLE devices only).
- Consider the Offset value in the Range Over judgment of DP-30XY.
- Fixed an issue where EXCEL maximization was canceled in "Other Records".
- Fixed a bug that the DET-234 measurement direction change command works only once.
- ●Ver1.2.3.0[2022.01.24]
- Addition of compatible models Levelnic DL-SXYW-S.
- Addition of compatible models Levelnic DL-mXY.
- Addition of compatible models Levelnic DL-m4,5.
- Supports switching the main unit of BluetoothBOX DG02 to real-time mode.
- Fixed to save CSV file in one file at the time of batch recording.
- Fixed a bug that only one measuring instrument can be overwritten when EXCEL recording of multiple measuring instruments is completed and the completion dialog is canceled.
- ●Ver1.2.2.0[2021.12.28]
- Enhanced the EXCEL recording function so that recording can be set across multiple sheets.
For example, you will be able to record multiple sheets in the same cell range from Sheet1 to Sheet3. - Enhanced the recording completion dialog to be displayed only when all the recordings of the connected measuring instruments are completed.
All the items displayed for each measuring instrument will be displayed when recording is completed. - Enhanced to be able to record with the record button when the real-time setting is OFF
The real-time function causes a momentary interruption and consumes a lot of battery power, so it is now possible to request and record measured values only when the button is pressed. - The ANT communication measuring device is upgraded so that it changes to a green connection icon when communication is established after pressing the connection button.'
- Upgrade to hide measuring instruments that cannot use the real-time function.
- Fixed a bug that the Bluetooth BOX DL1 may be disconnected when recording using the record button.
- Fixed a bug that the proxy processing of license authentication is incorrect.
- Fixed a bug that a setting failure dialog appears even when the proxy is not used.
- Fixed a bug that the real-time function is changed to ON when a command is sent even if the real-time function is OFF.
- Fixed a bug that the resolution set on the "Measuring instrument setting screen" was not reflected.
- For products whose names are difficult to understand on the product selection screen, change the display contents of the measuring instrument name.
- Enhanced the EXCEL recording function so that recording can be set across multiple sheets.
- ●Ver1.2.1.0[2021.12.07]
- Supports proxy connection.
- Fixed the degradation that may be judged as not installed even if EXCEL is installed.
- ●Ver1.2.0.0[2021.11.22]
- Added the creation date and time to the setting file name with the export button of the application.
- The initial value of ANT Dev No in the MW series is automatically set in conjunction with the measuring instrument No.
- When the number of measuring instruments registered is 0, the product selection screen is displayed at startup.
- The real-time function can be set for each measuring instrument.
- Support for product registration by simply clicking the product name on the product selection screen.
- Fixed not to start multiple when selecting a cell range of EXCEL.
- Fixed a bug that data is sent once for the first time after the connection is completed with BluetoothBOX DTW-DG02.
- Fixed a bug that freezes when using the EXCEL function on a computer that does not have EXCEL installed.
- ●Ver1.1.13.1[2021.11.04]
- Fixed a bug that the setting file of the old version could not be read.
- ●Ver1.1.13.0[2021.10.28]
- Added compatible models Digital S line height gauge (M series).
- Added sound setting item when recording is completed.
- Real-time communication is possible when a digital caliper or micrometer is connected by wire.
- Fixed a bug in the number of resolution selectable errors in the digital S line indicator (MH, MW series).
- Support for Win10 PC environment where Internet access may not be possible when using version check or demo version function (SSL library update).
- ●Ver1.1.12.1[2021.10.15]
- Added support for DTW-DG02 (BluetoothBOX for Win10) models.
- Fixed a bug that communication is not possible when measuring instruments of different communication types are deleted or added.
- Fixed a bug that the measuring instrument No. and the measuring instrument different communication types are deleted or added.
- ●Ver1.1.11.2[2021.09.06]
- Fixed the problem that the measuring instrument settings cannot be deleted. (for Ver1.1.11.1)
- Easy identification of real-time buttons.
- ●Ver1.1.11.1[2021.09.03]
- Fixed to be able to assign a shortcut key to the batch record button.
- Fixed display position problem when editing shortcut keys.
- Fixed an issue where the display balance would be incorrect on a high DPI computer.
- Corrected notation of user registration function.
- Fixed a minor bug in the cell position memory function.
- ●Ver1.1.10.0[2021.08.17]
- Fixed the problem that the connection cannot be established because the "?" Icon is displayed when using the MW series.
- ●Ver1.1.9.0[2021.07.27]
- Added support to record from the previous cell position even if the application is closed.
- ●Ver1.1.7.0[2021.06.09]
- Fixed a communication disconnection bug during continuous recording with Bluetooth BOX for Levelnic
- Fixed a bug that the reception of the measured value is not recognized
when the same measured value is received twice in a row. - Added support to leave the active window as the recording destination application
after recording in "Other recording"
- ●Ver1.1.6.0[2021.04.20]
- Fixed a bug that measured values may not be received when recording CSV.
- Fixed a bug in thread timer internal processing.
- ●Ver1.1.5.0[2021.04.13]
- Added the function to enlarge / reduce the setting screen.
- Fixed time-out processing and measuring instrument button operation recording problems in Levelnic related products.
- Fixed to start Lite version even when Web license is not authenticated.
- ●Ver1.1.4.0[2021.03.22]
- Added Levelnick DL-SXY.
- Added timeout handling for Levlenick related products.
- Added wireless / wired digital S-line indicators (MW series, MH series).
- ●Ver1.1.3.0[2021.02.01]
- Improved reconnection processing for BLE devices.
- Improved reconnection processing for BLE devices.Dialog display when export is completed.
- Resolution display setting change bug fix.
- Fixed a bug in the tolerance bar display when displaying a list.
- Addressing the problem of layout collapse when displaying high DPI.
- ●Ver1.1.2.0[2021.01.05]
- Added compatible models
Bevel Box BB-180W
Digital Protractor DP-10XY - Correct the initial value of the resolution setting
- Fixed a bug that tolerance setting command is sent
- Added compatible models
